DESCRIPTION
PAIR SE AND BAL HEADPHONES OF YOUR CHOICE WITH 3 GAIN MODES

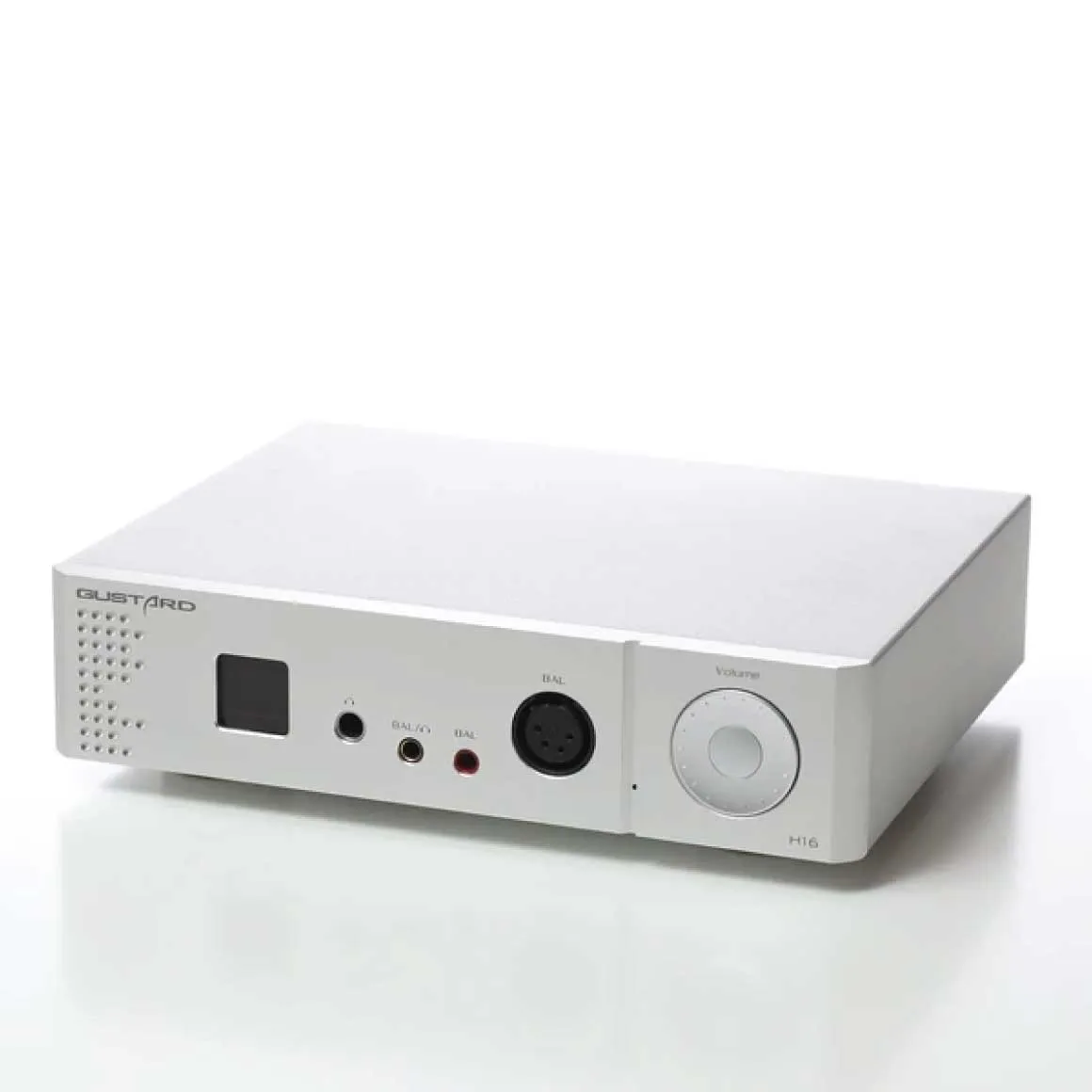

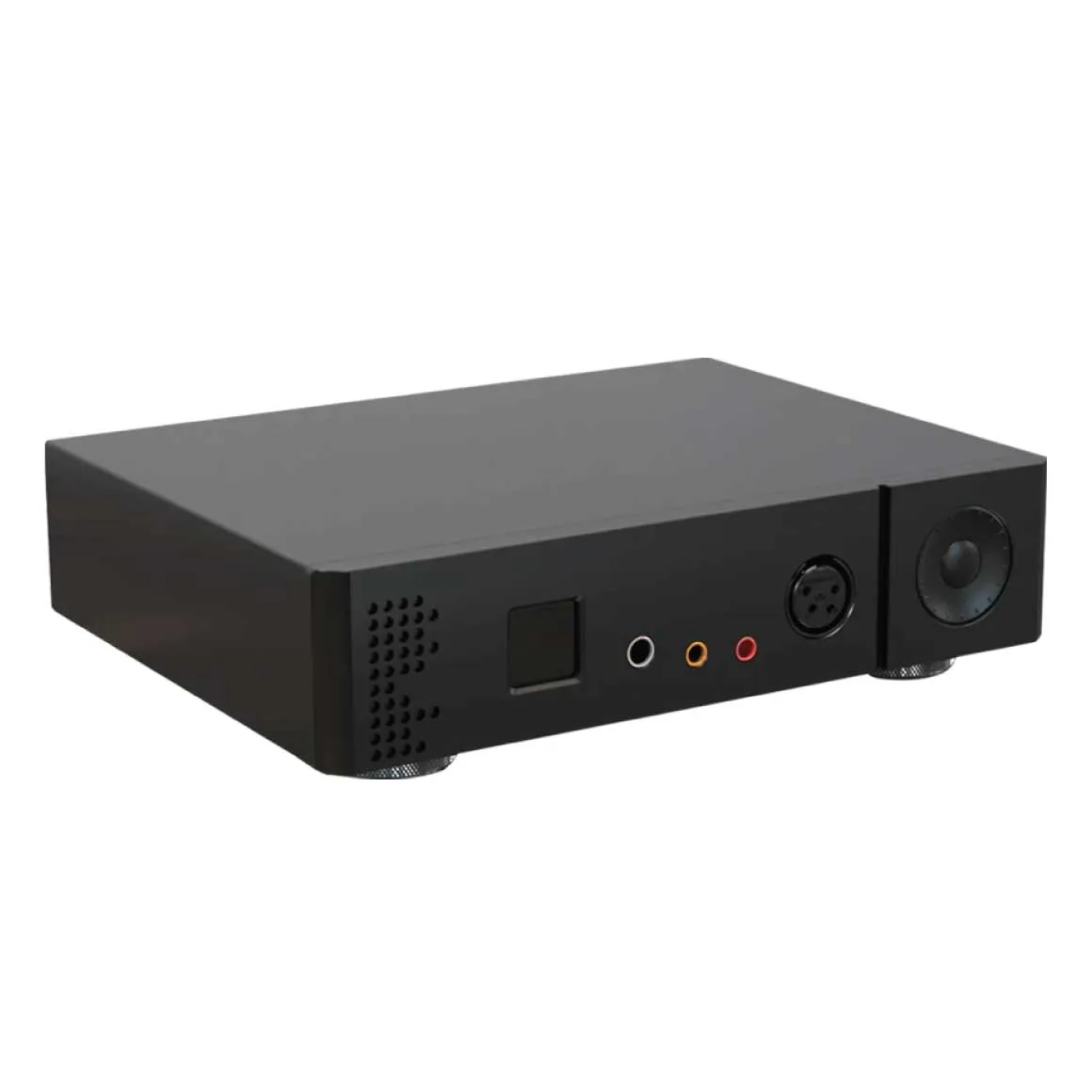

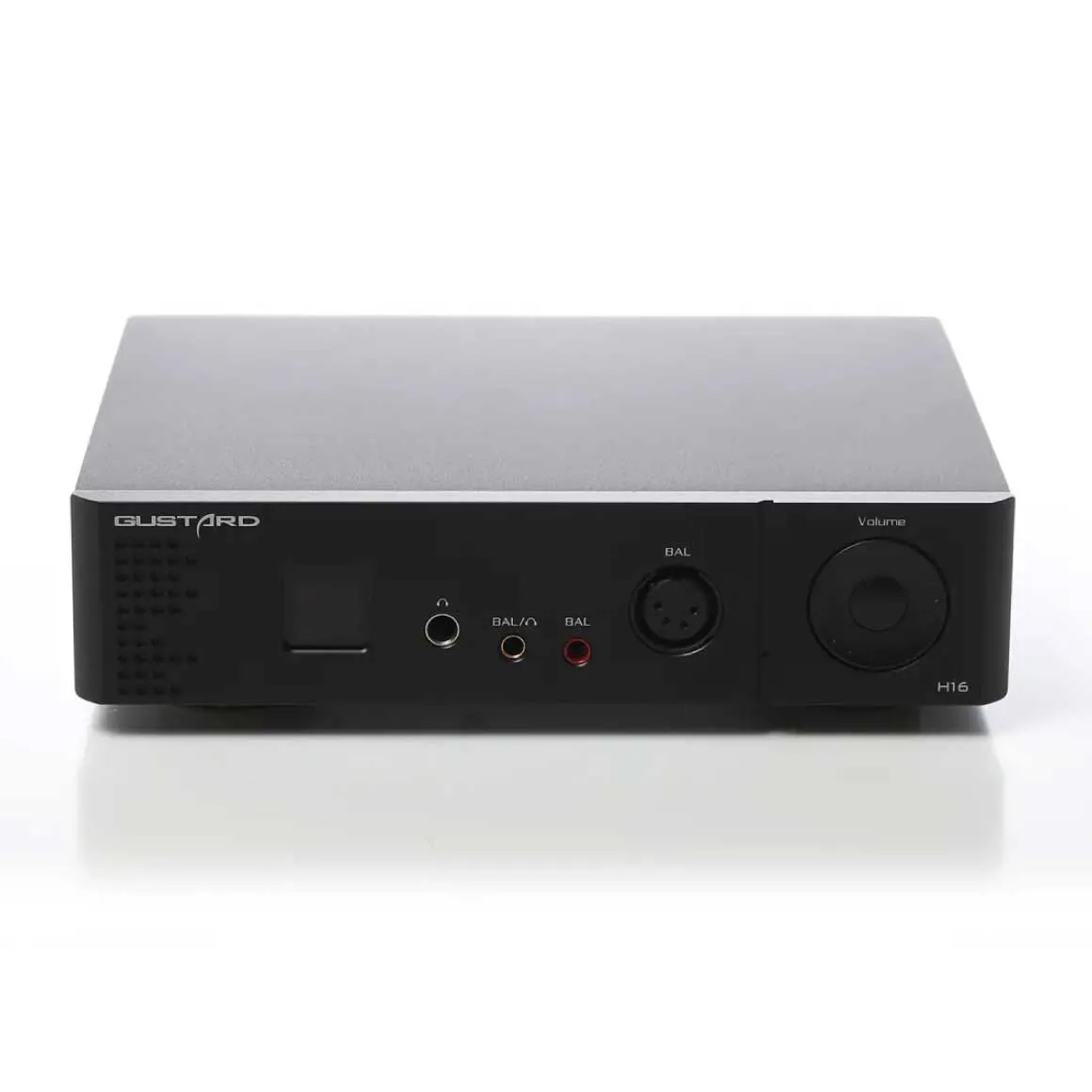

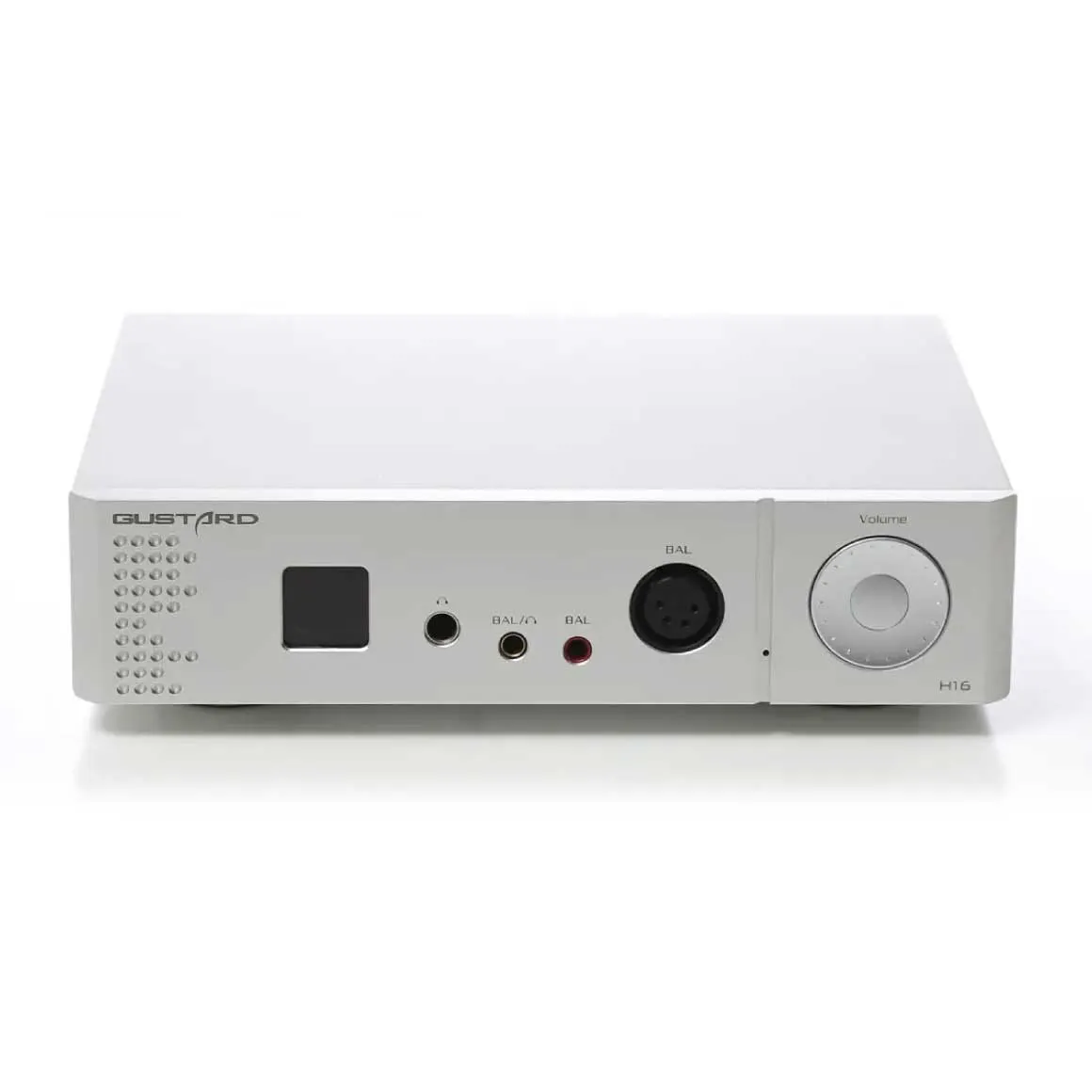

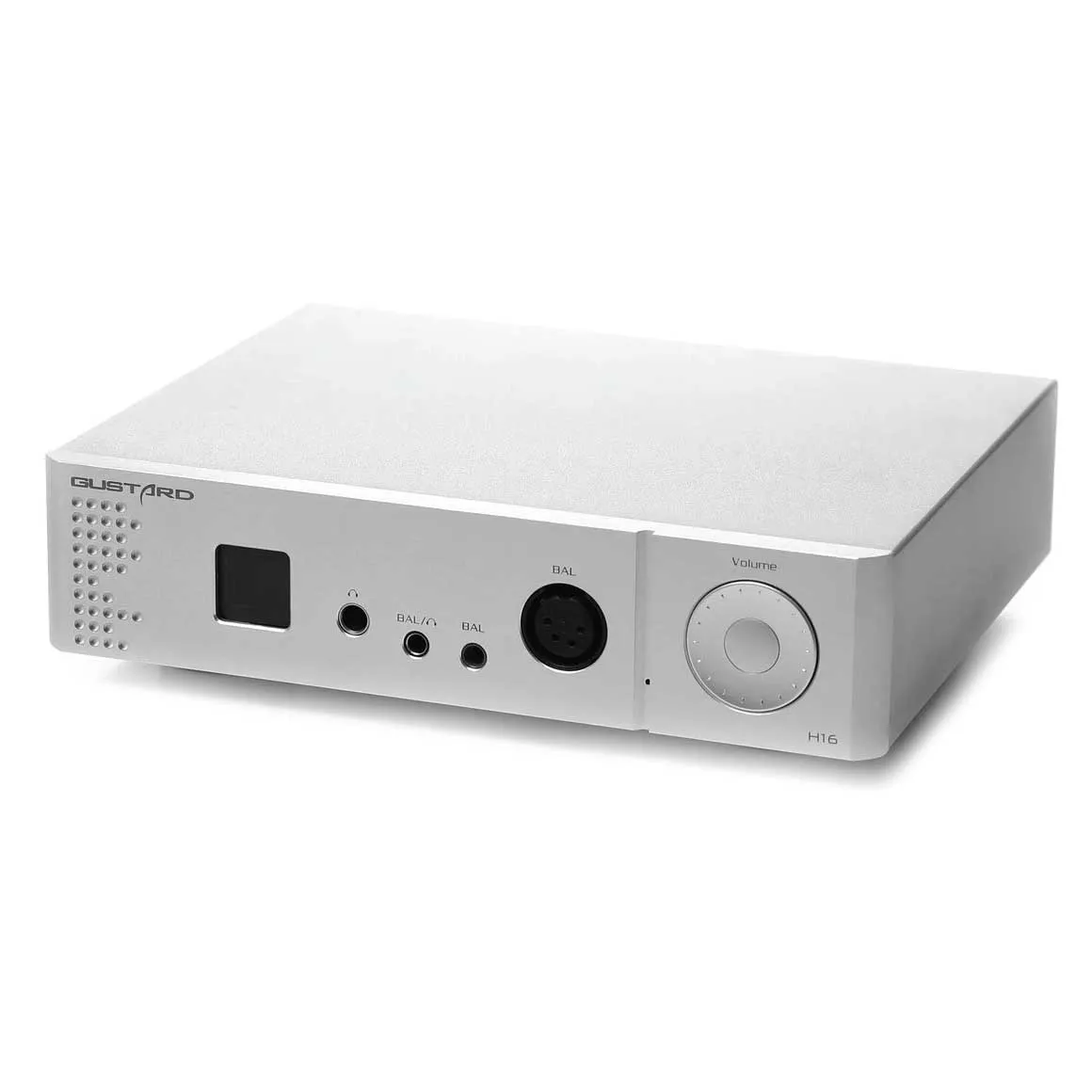

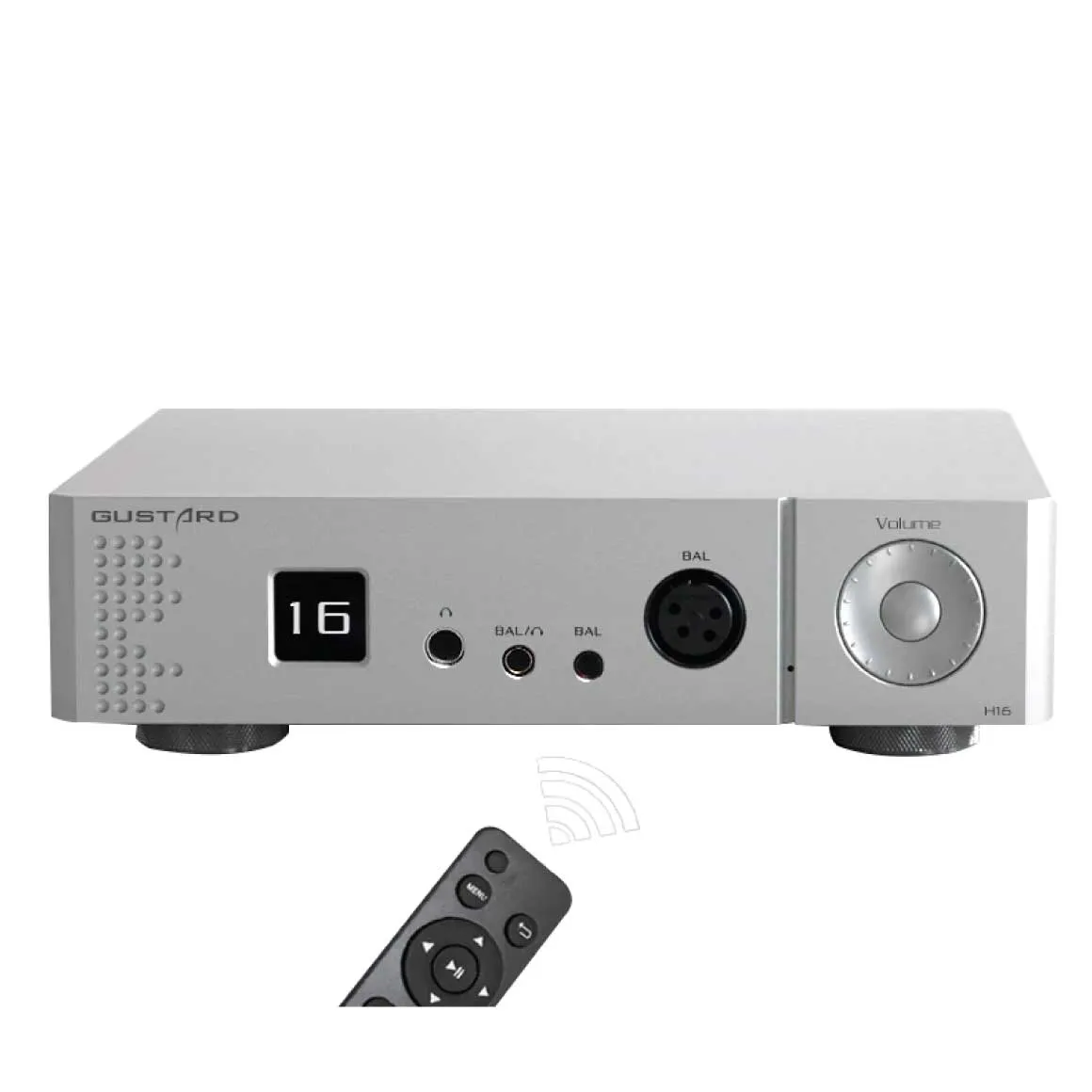

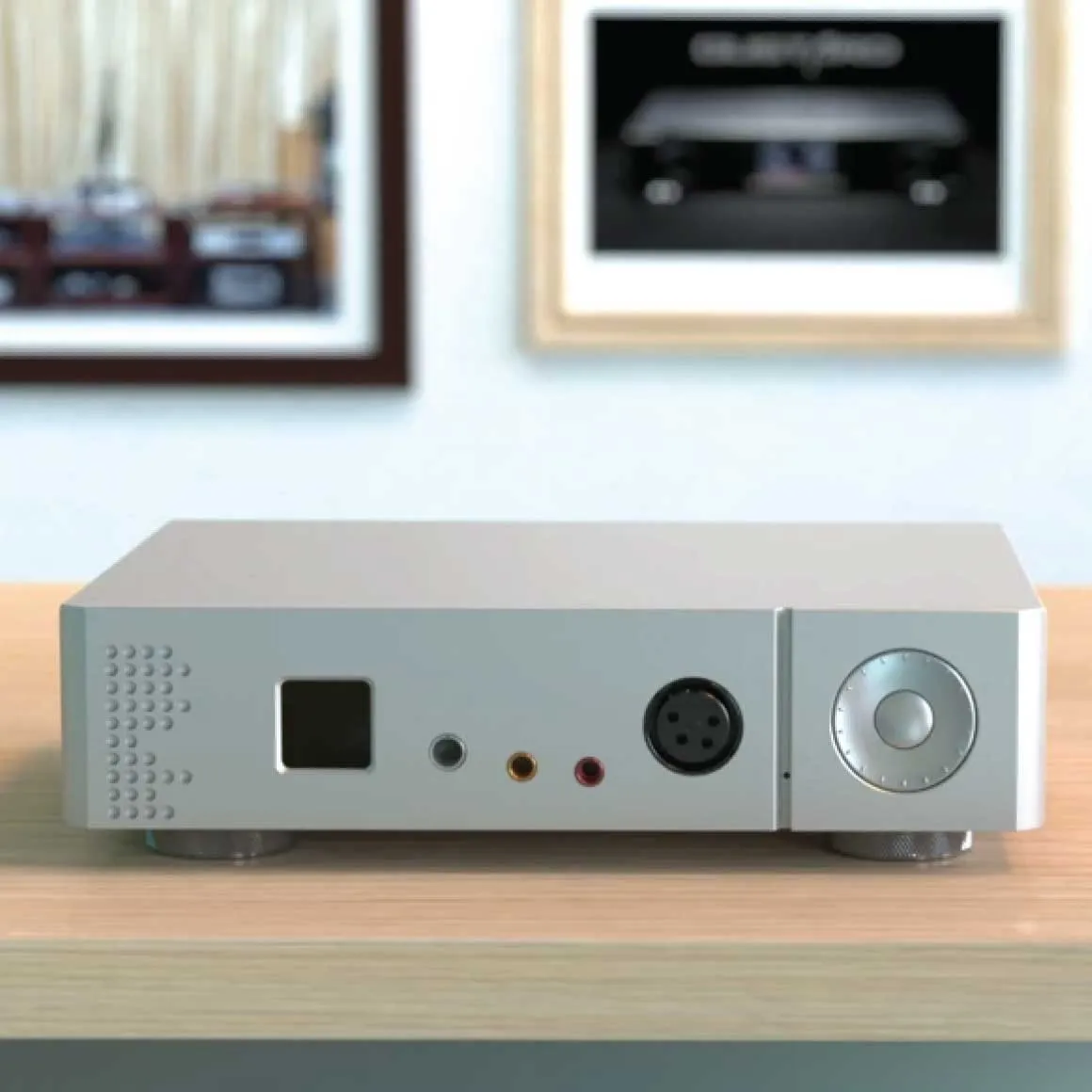

Designed to drive regular headphones seamlessly, the GUSTARD H16 comes with a 3-stage gain adjustment setting making it a perfect match for small earphones as well as big ones. While the GUSTARD H16 can easily drive balanced headphones, it also manages to get the best possible performance from single-ended high-impedance headphones as well.
SUPPORTS VOLUME CONTROL AND A HOST OF BALANCED/UNBALANCED OUTS

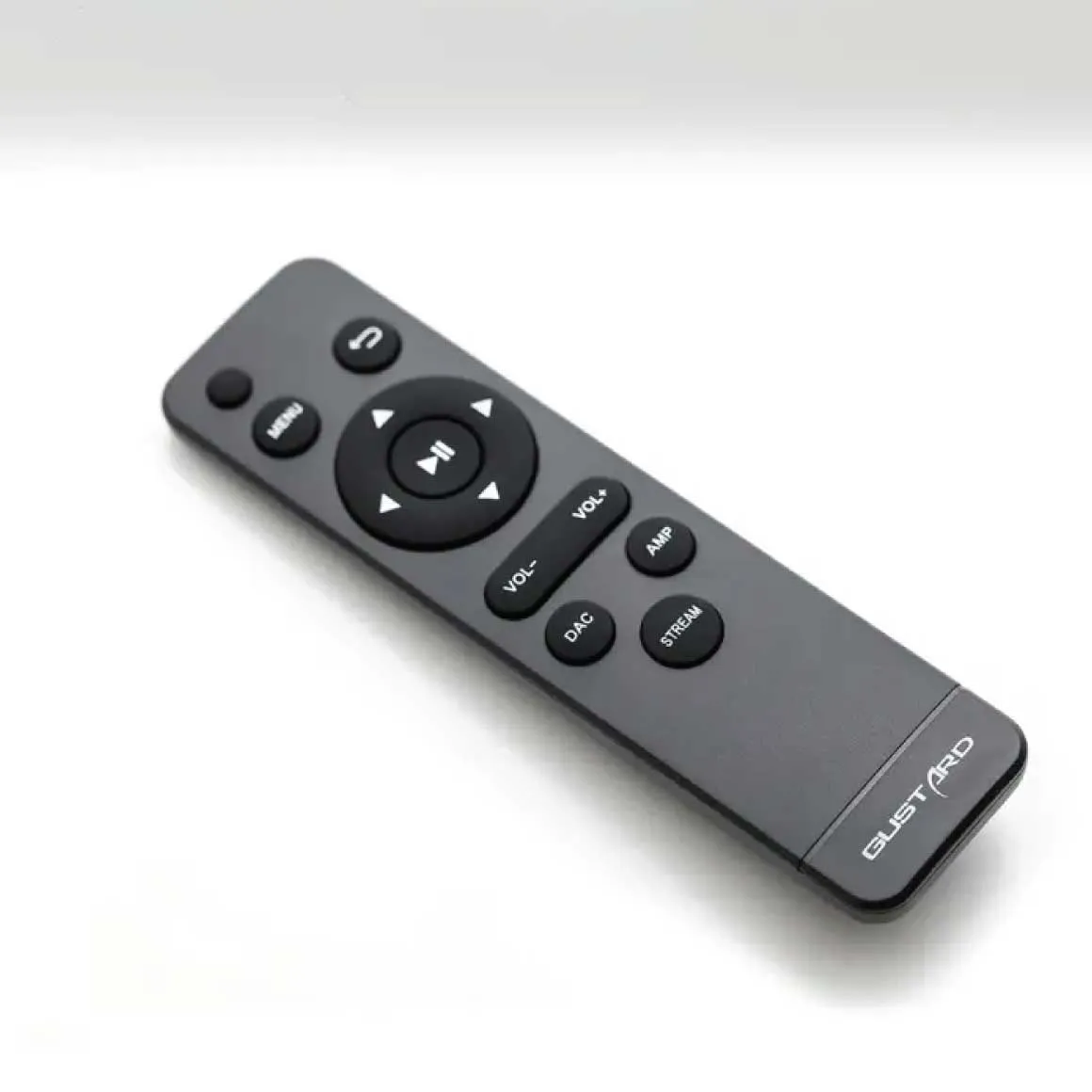

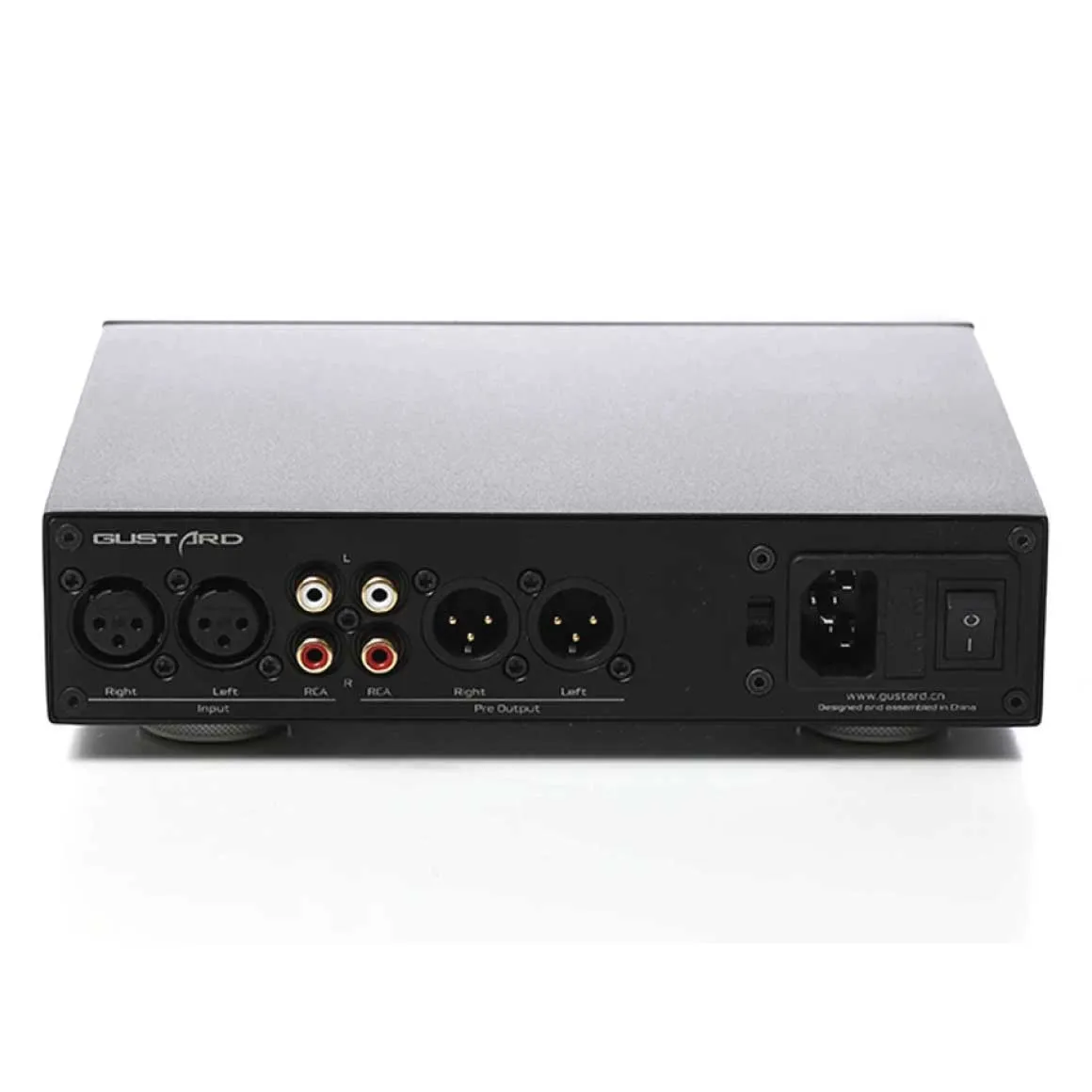

Equipped with a pre-amplifier output and remote control, the H16 can be paired with active speakers to be used as a volume controller. With a separate design for balanced and single-ended, there is a range of unbalanced and balanced audio outputs to choose from like the 6.35mm, 3.5pro, 4.4 and XLR output.
NOISE-FREE, RELIABLE OPERATION WITH VOLUME CONTROL & A TAIWAN-MADE DECODER
Get rid of noise bias with matrix relay powered volume control, this ensures that the volume levels on both the right and the left are the same and free of noise. The use of Taiwan made mechanical decoder enables smooth, accurate and stable operation. It adopts a human-computer interaction system.
QUALITY AUDIO AND LINEAR POWER SUPPLY WITH TOROIDAL TRANSFORMER
Be rest assured of linear power supply and high-quality audio with the in-built toroidal transformer. Adopting OPA1642 and OPA1678 to match impedance, the input buffer of the Gustard H16 is compatible and convenient for multiple front ends. The pre-amplification and drive circuit rely on the combination of LME49724 LME49722 for excellent performance.
SPECS
OP-AMP | LME49724 LME49722 |
ONE SET OF RCA STANDARD INPUT,TYPICAL INPUT SENSITIVITY | 2Vrms; input impedance 4.7kΩ |
ONE SET OF XLR BALANCED INPUT,TYPICAL INPUT SENSITIVITY | 18dBu maximum 26dBu;input impedance 10kΩ |
FREQUENCY RESPONSE | 20-80kHz/-0.1dB |
SIGNAL TO NOISE RATIO | 120dB |
THD N | <0.0004% |
IMD | <0.0004% |
CHANNEL CROSSTALK | -120dB@1kHz |
SINGLE PORT OUTPUT IMPEDANCE (6.35MM) |
0.1Ω |
BALANCE PORT OUTPUT IMPEDANCE |
0.2Ω |
FREQUENCY RESPONSE | 20-80kHz/-0.1dB |
SIGNAL TO NOISE RATIO | >118dB |
THD N(1KHz) | <0.0005%@3700mW into 640 LOAD |
IMD | <0.0005% @3700mW into 640 LOAD |
CHANNEL CROSSTALK | -118dB@1kHz |
MAXIMUM UNDISTORTED OUTPUT POWER | 3700mW into 64Ω LOAD balanced output |

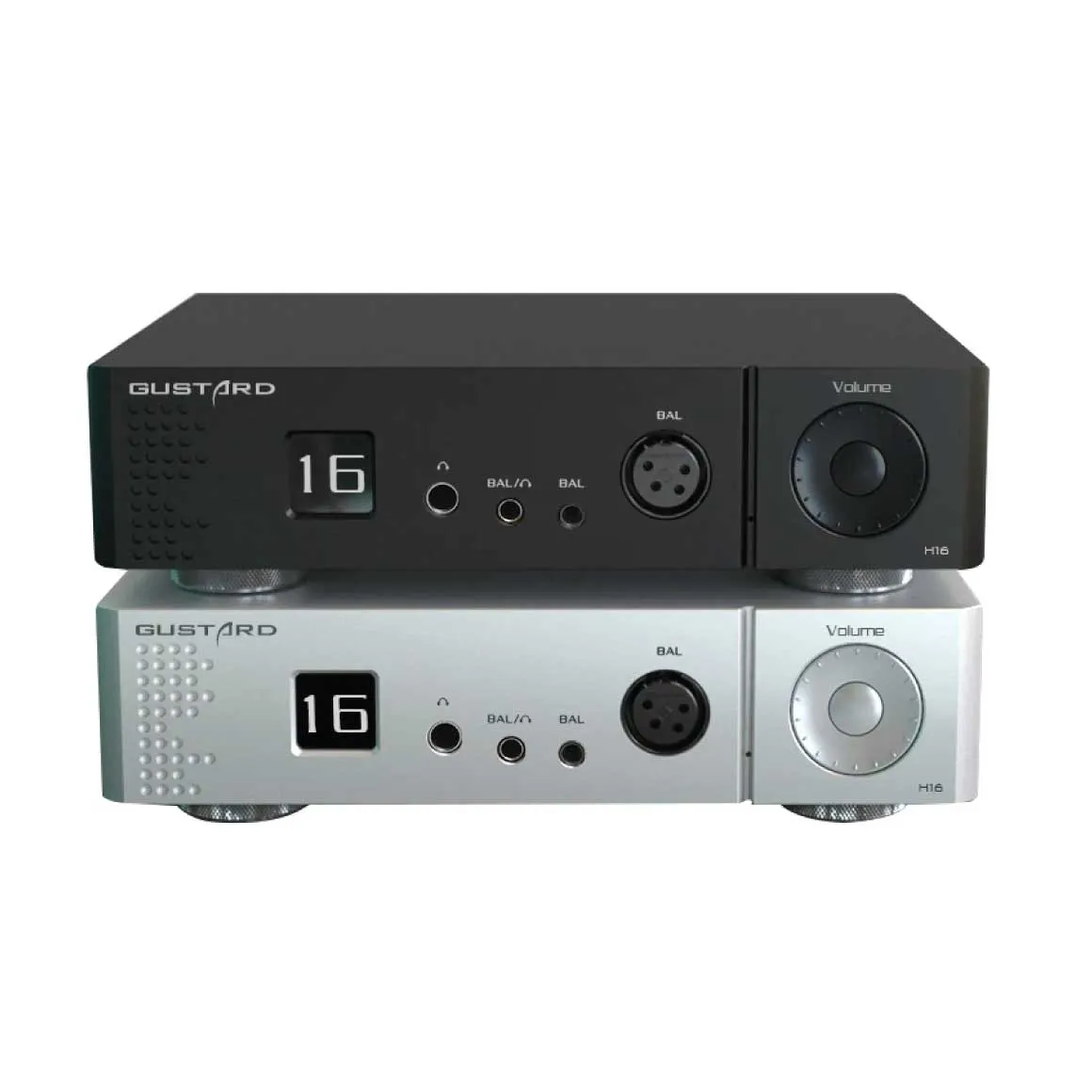

COLOR | Black Silver |
AC POWER SUPPLY | AC 115V/230V 50/60Hz |
POWER CONSUMPTION | <20W |
DIMENSIONS | 220mm*50mm*170mm |
WEIGHT | 2.5Kg |
LOAD POWER | 64Ω 3700mW 150Ω 2268mW 300Ω 1133mW 600Ω 566mW |
BOX CONTENTS | 1. GUSTARD H16 Headphone Amplifier |
2. 1 X Remote Control | |
3. Warranty Card |
