AHRI Certified Match: 214859639

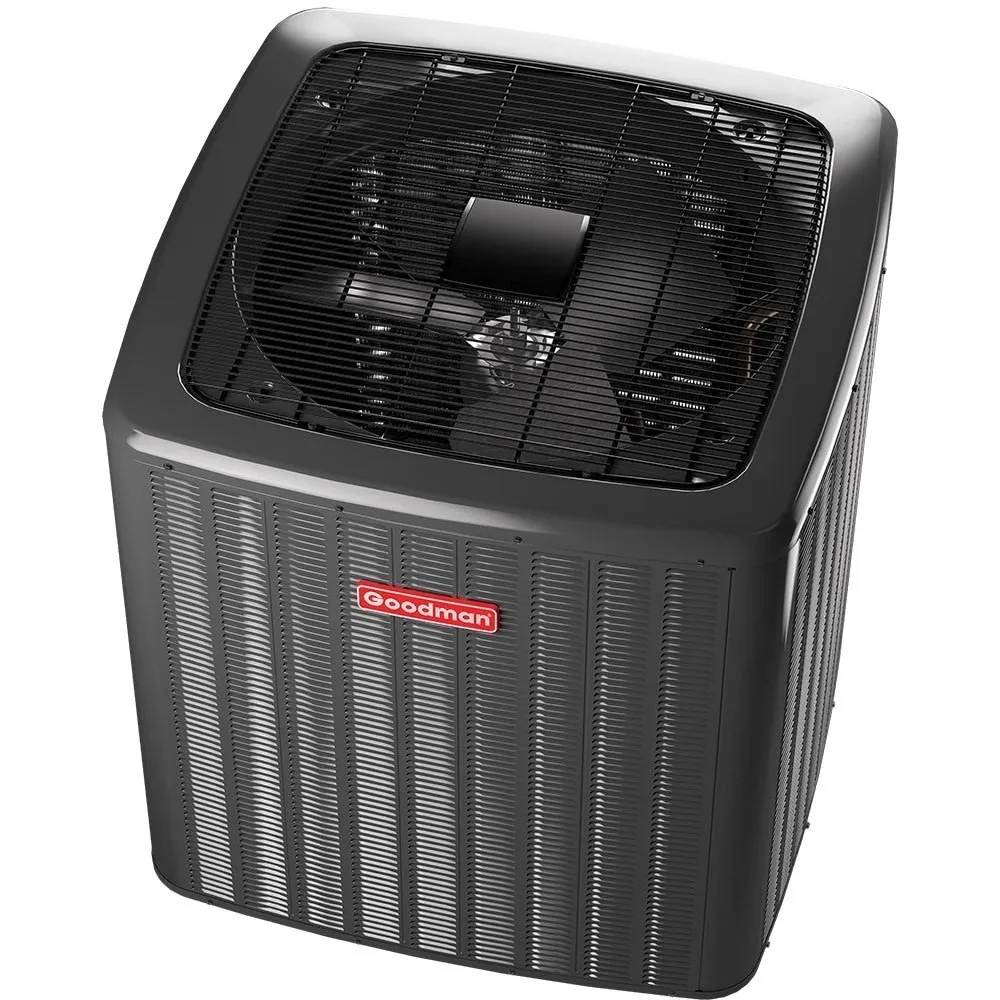

Standard Features

• High efficiency Energy-efficient compressor
• High-density foam compressor
• Advanced Copeland® Technology
• Fully charged for 15' of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor
• High-pressure switch
• Ground lug connection
• Capacitors with extended life
• AHRI Certified
• ETL Listed

Cabinet Features

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

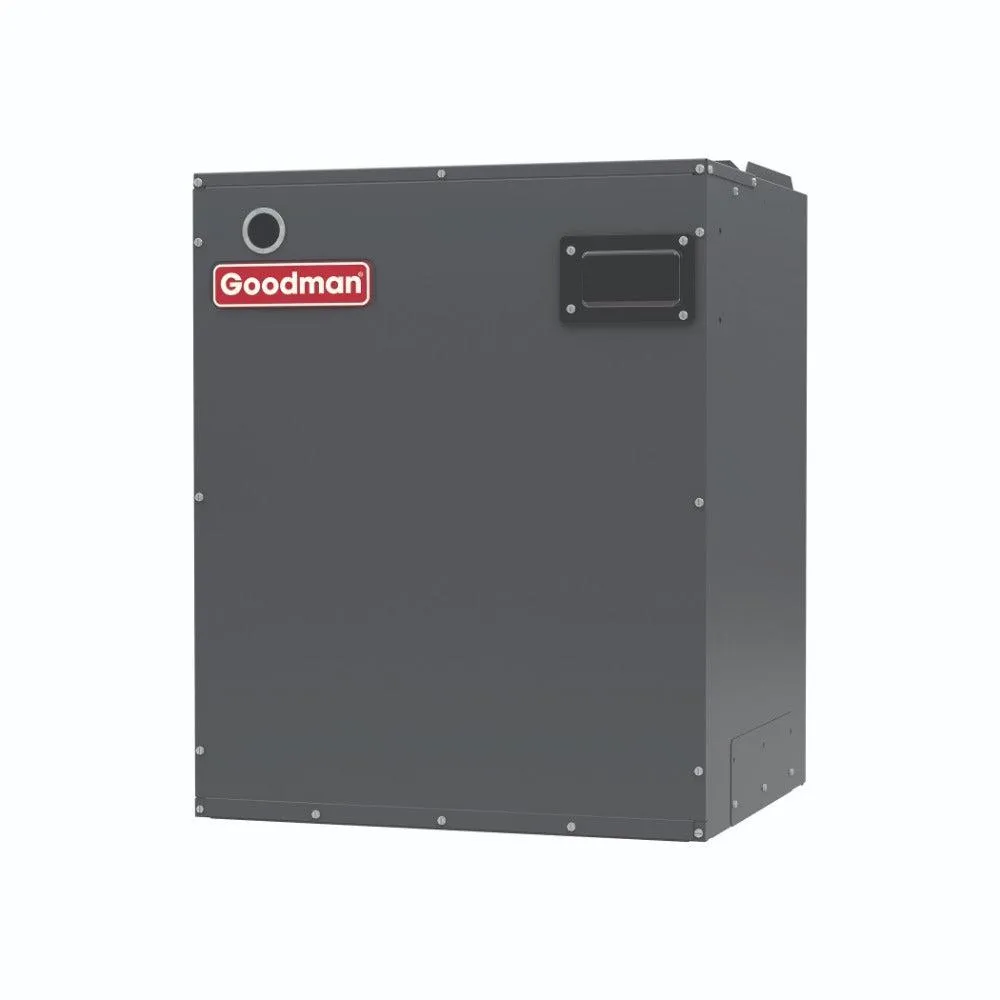

Product Features

• Variable-speed ECM blower motor
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via on-board Bluetooth with the CoolCloud™ phone and tablet application
• Advanced configuration of the airflow and tonnage in communicating mode
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for efficient fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat pump and cooling applications
• UL 60335 2-40 Compliant
• AHRI certified; ETL listed

Cabinet Features

• Blower section usable as electric heater
• Horizontal or vertical configuration capabilities
• 21” depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Cabinet air leakage less than 2% at 1.0 inch H?0 when tested in accordance with ASHRE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H?0 when tested in accordance with ASHRE standard 193
• Field Installed 3 kW – 20 kW electric heater kits available
